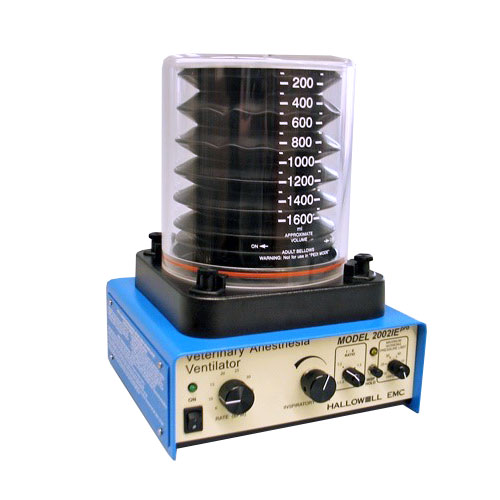

Hallowell 2002 Pro 300-1600 ml Ventilator with 0-300 ml Pediatric Attachment
78926929

The Hallowell EMC Model 2002 Pro is an electronically controlled, time-cycled, pressure-limited ventilator. A single fine volume control valve turns a total of nine and a half times. The first two and a half turns use the slight, minute changes for pediatric animal patients, and the remainder of the rotations are for use with the adult and extra-large bellows and housings.

A low supply gas pressure alarm will sound when the supply gas pressure falls below 35 psi, 2.4 bar and stops around 42 psi. The normal supply gas operating pressure is 50 psi or 3.5 bar. It is not until 35 psi or 2.4 bar that the ventilators delivered volume will begin to drop off proportionally with the waning supply pressure.

Questions? Contact us
1.800.877.8989

Features

Electronic control – Eliminates the substantial driving gas required to operate pneumatically controlled ventilators.

Time cycled – Ensures consistently spaced breaths. The possibility of stacking breaths or auto-PEEP is eliminated by keeping the I:E ratio constant at 1:2. This means that regardless of the respiratory rate setting 2/3 of the breath will remain for expiration. The respiratory rate is adjustable from 6 to 40 breaths per minute (BPM).

Volume constant – Ensures that each delivered breath will have essentially the same volume, independent of changes in animal patient compliance and airway resistance. The deliverable tidal volume (TV) range is from approximately 20 cc to 3,000 cc.

Pressure limited – Provides for animal patient safety by limiting the maximum working pressure limit (MWPL) to a user adjustable pressure range of 10 - 60 cm H2O. Ventilators are equipped with dual airway pressure alarms that monitor and sound when the peak inspiratory pressure (PIP) of any breath either exceeds the preset maximum working pressure limit (MWPL); or fails to reach 6 cm H2O as in the case of a disconnect.

Specifications

Operational characteristics
Rate: 6-40 bpm
Tidal volume: 0-3000 ml
I:E ratio: 1:2 (preset)
Gas supply: Oxygen or clean dry air
Pressure and flow: 35-65 psi @ 3 scfm [2.4 - 4.4 bar @ 100 lpm]

Controls
Rate: Linear, 6-40 bpm with power switch Volume: 9.5 turn metering valve
Maximum working pressure limit: Linearly adjustable, 10 - 60 cm H2O

Indicators
Power on: Front panel-mounted green LED
Alarm, visual: Front panel-mounted yellow LED
Alarm, audio: Internal audio transducer
Alarm, audio: Internal low supply gas pressure switch

Physical
Unit weight: Approximately 13 lb [5.9 kg]
Dimensions: controller footprint: 9" W x 10" D [228 mm W x 254 mm D]
